Why wont Excel let me add an exponential trendline?

Excel uses a log transformation of the original Y data to determine fitted values, so the values of the dependent variable Y in your data set must be positive. If any Y values are zero or negative, the Exponential option will not be available.

What is the exponential trendline in Excel?

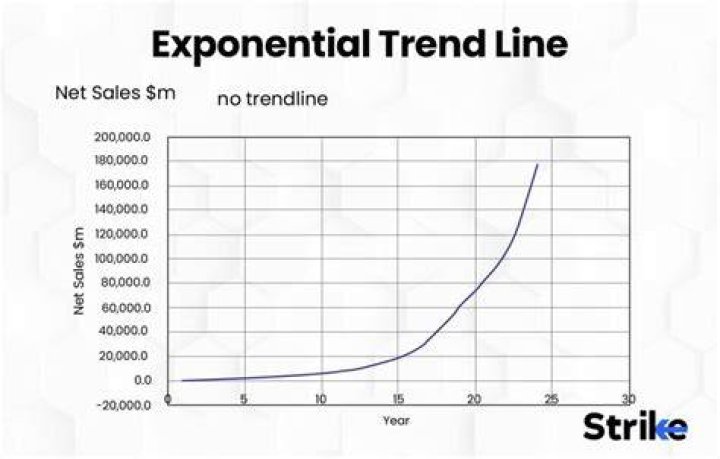

The exponential trendline is a curved line that illustrates a rise or fall in data values at an increasing rate, therefore the line is usually more curved at one side. This trendline type is often used in sciences, for example to visualize a human population growth or decline in wildlife populations.

How do I insert a fill map in Excel?

Now it’s time to create a map chart, so select any cell within the data range, then go to the Insert tab > Charts > Maps > Filled Map. If the preview looks good, then press OK. Depending on your data, Excel will insert either a value or category map.

How do you find the exponential trendline?

An exponential trendline was added to the chart giving the expression y = 3 ´ exp(0.25x). The range G3:H3 was selected and the formula =LOGEST(B5:B14, A5:A14) was entered and completed with SHIFT+CTRL+ENTER since it is an array function.

How do I add a trendline in Excel 2016?

How to add Trendline in Excel

STEP 1:Highlight your table of data, including the column headings:
STEP 2: Select All Charts > Line > OK (Excel 2013 & 2016)
STEP 3: Right-click on the line of your Line Chart and Select Add Trendline.
STEP 4: Ensure Linear is selected and close the Format Trendline Window.

How do I add a trendline in Excel for Mac?

Insert and format a trendline in Excel for Mac

Select the chart you want to add a trendline to.
After selecting your chart, click on the Chart Design tab in your ribbon interface.
Click on the Add Chart Element button, pictured above.
Hover over Trendline and select whichever option you want to add to your chart.

How do I create a geographical heat map in Excel?

For creating a heat map we will be using Geographic Heat Map App and it is free.

Open your Excel sheet then go to Insert > My Apps.
Then click on the Store and type text Geographic Heat Map on the search box.
After adding the app, the first time it will automatically open the Geographical Heat Map window.

What is exponential trendline?

An exponential trendline is a curved line that is most useful when data values rise or fall at increasingly higher rates. You cannot create an exponential trendline if your data contains zero or negative values. Note that the R-squared value is 1, which means the line fits the data perfectly.

How do you calculate a trendline in Excel?

Calculate the first value of the trendline using the TREND function:

type ” =TREND( ” or use the Insert Function (fx) menu in Excel.
Select all “known y” values and press F4 (e.g., “$B$3:$D$3”).
Select all “known x” values and press F4 (e.g., “$B$1:$D$1”).
Select the first x value (e.g., “B1”) and press ENTER .

How do you add a trendline?

Add a trendline

Select a chart.
Select the + to the top right of the chart.
Select Trendline. Note: Excel displays the Trendline option only if you select a chart that has more than one data series without selecting a data series.
In the Add Trendline dialog box, select any data series options you want, and click OK.
